Service

LA County Sheriff

Airbus
AS350B2

Project Overview

Hangar One Avionics partnered with the Los Angeles County Sheriff’s Department to revitalize its aging AS350B2 fleet through a full re-completion program, centered around a 12-year inspection cycle and complete aircraft teardown. Each platform underwent a full de-mod and rebuild, transforming legacy systems into modern, mission-ready assets equipped with advanced avionics, enhanced communications, tactical lighting, and critical safety systems. The result is a fully reimagined aircraft designed to meet the evolving demands of airborne law enforcement operations.

The scope of work included full cockpit redesign and integration of Garmin flight systems, upgraded multi-band communication suites, real-time video and mapping systems, and NVIS-compatible lighting for night operations. Additional enhancements such as airframe upgrades, environmental systems, crash-resistant fuel systems, and specialized mission equipment ensure durability, operational efficiency, and crew safety. This re-completion effort extends the lifecycle of the fleet while elevating performance, reliability, and mission capability across every aircraft.

Client
LA County Sheriff
Aircraft
Airbus AS350B2
Market
Police Department
Location
Los Angeles, CA

Specs

Specifications
& Services

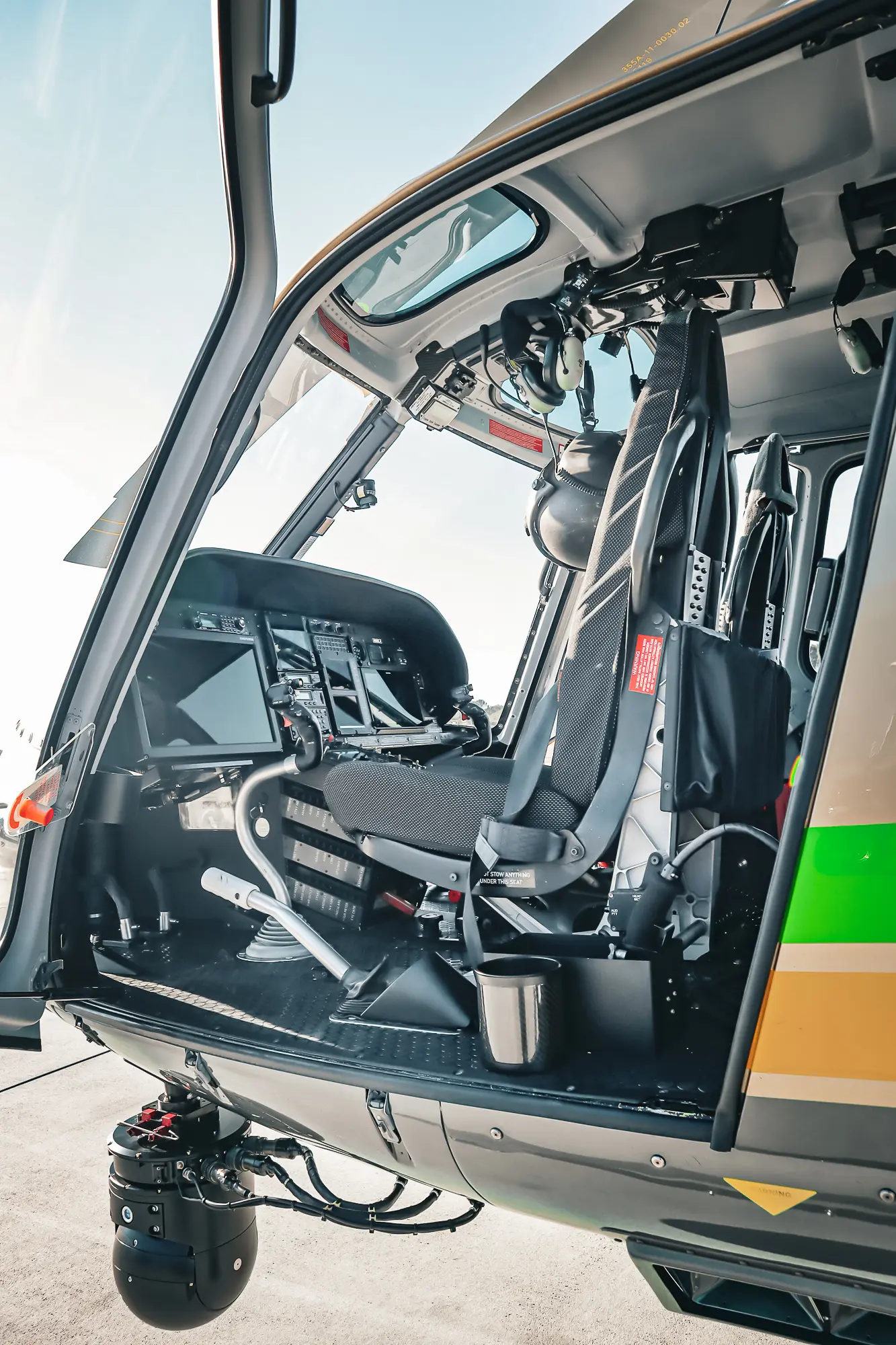

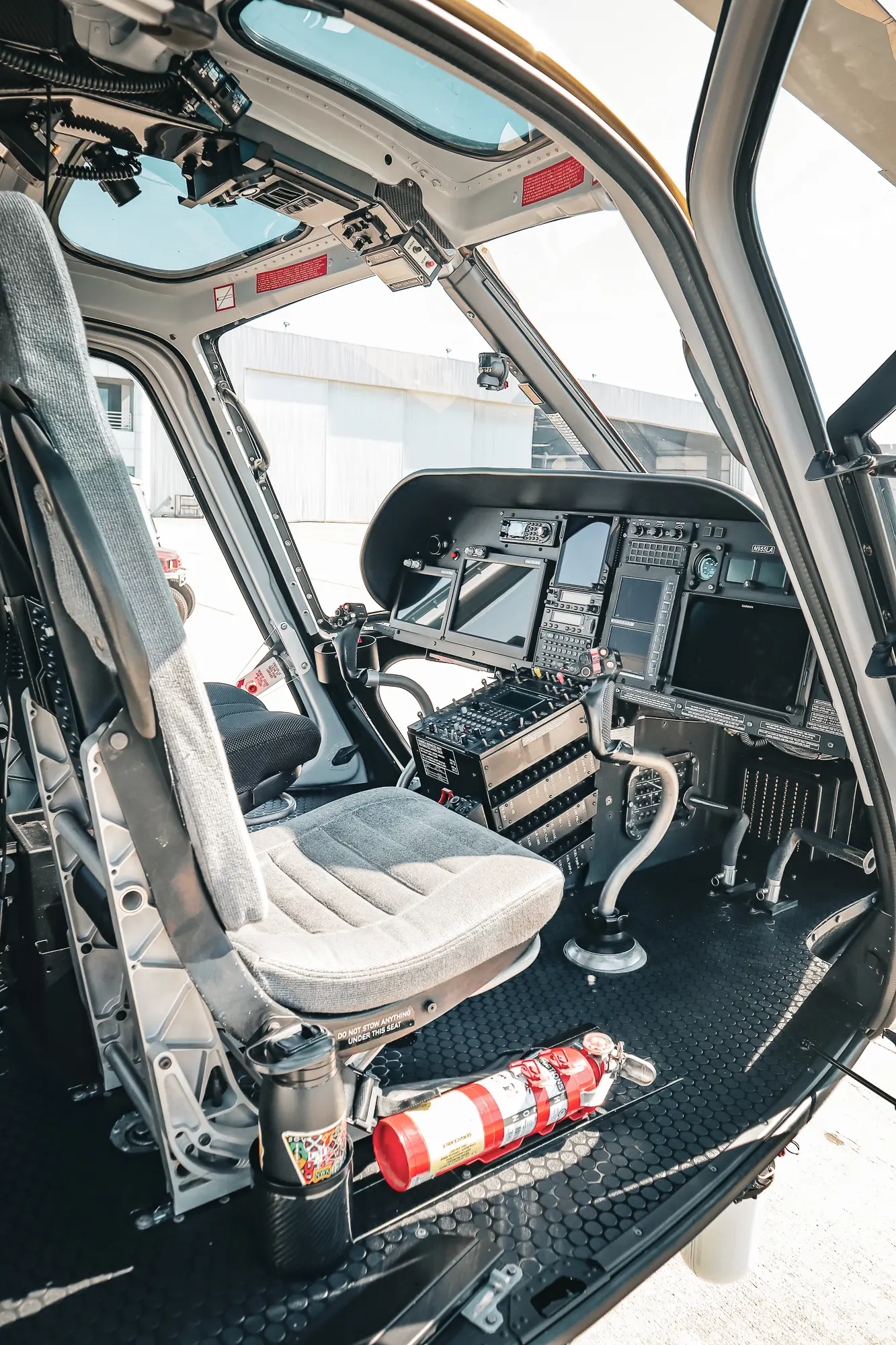

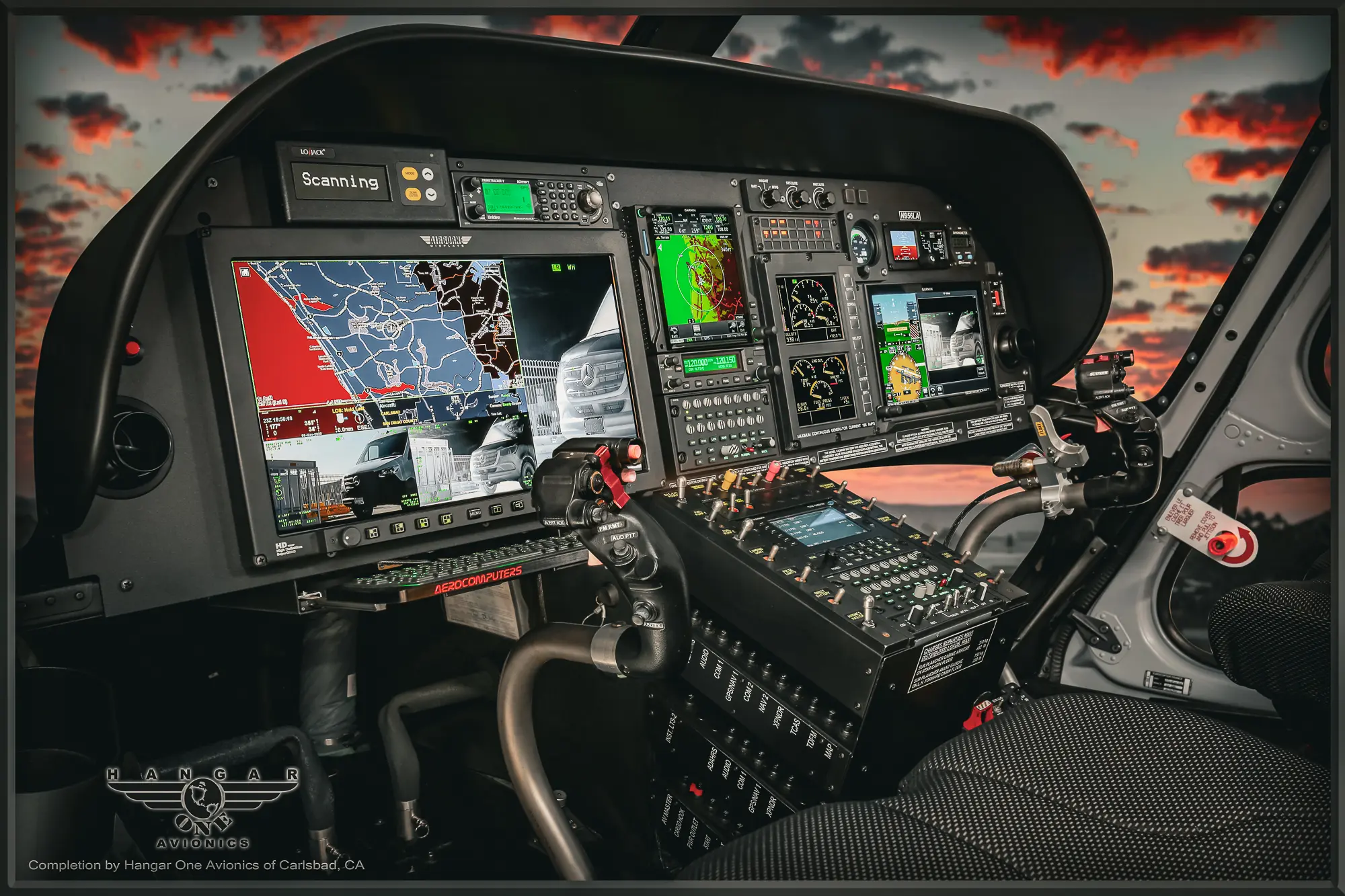

Instrument Panel and Consoles

  • Hangar One Avionics, Inc. Instrument Panel
  • Hangar One Avionics, Inc. Aft Center Console

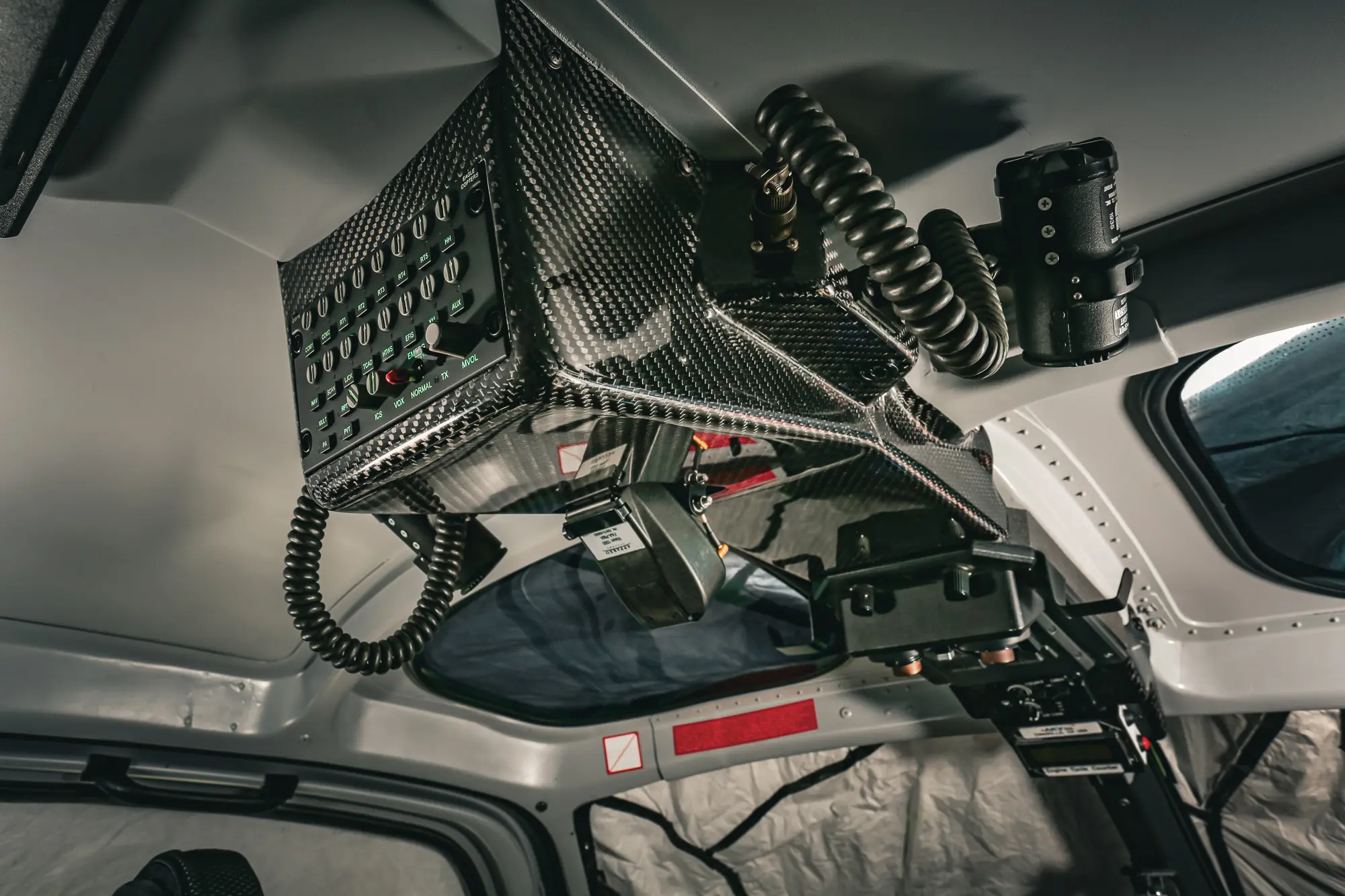

  • Hangar One Avionics, Inc. Composite Overhead Enclosure
  • Hangar One Avionics, Inc. Forward Composite Overhead Enclosure
  • Hangar One Avionics, Inc Aft Equipment Rack
  • AEM USA, Inc. P132 Center Console

Avionics

  • Garmin G500H TXi Flight Display System
  • Garmin GFC600H Flight Control System
  • Garmin GTX345R ADS-B in/out Mode S Transponder
  • Garmin GTS800 Traffic Advisory System
  • Garmin GRA55 Radar Altimeter 5G tolerant
  • Garmin GDL69AH SXM Weather System
  • Power Distribution and 14vdc Bus Installation
  • Hangar One Avionics, Inc. Avionics Diagnostics Panel

Communications

  • AEM USA, Inc. P139HD Digital Audio System
  • Garmin GTN750H Xi NVG GPS/SBAS/NAV/COM Navigator with HTAWS
  • Garmin GNC255B NVG NAV/COM
  • Uniden Bearcat Police Scanner
  • Technisonic TDFM 9300NV Multi-Band Transceiver
  • Public Address System
  • Auxiliary Quick Disconnect Handheld Transceiver Interface Provisions
  • Motorola Hand Held Radio Charger

Video, Observation, and Tracking

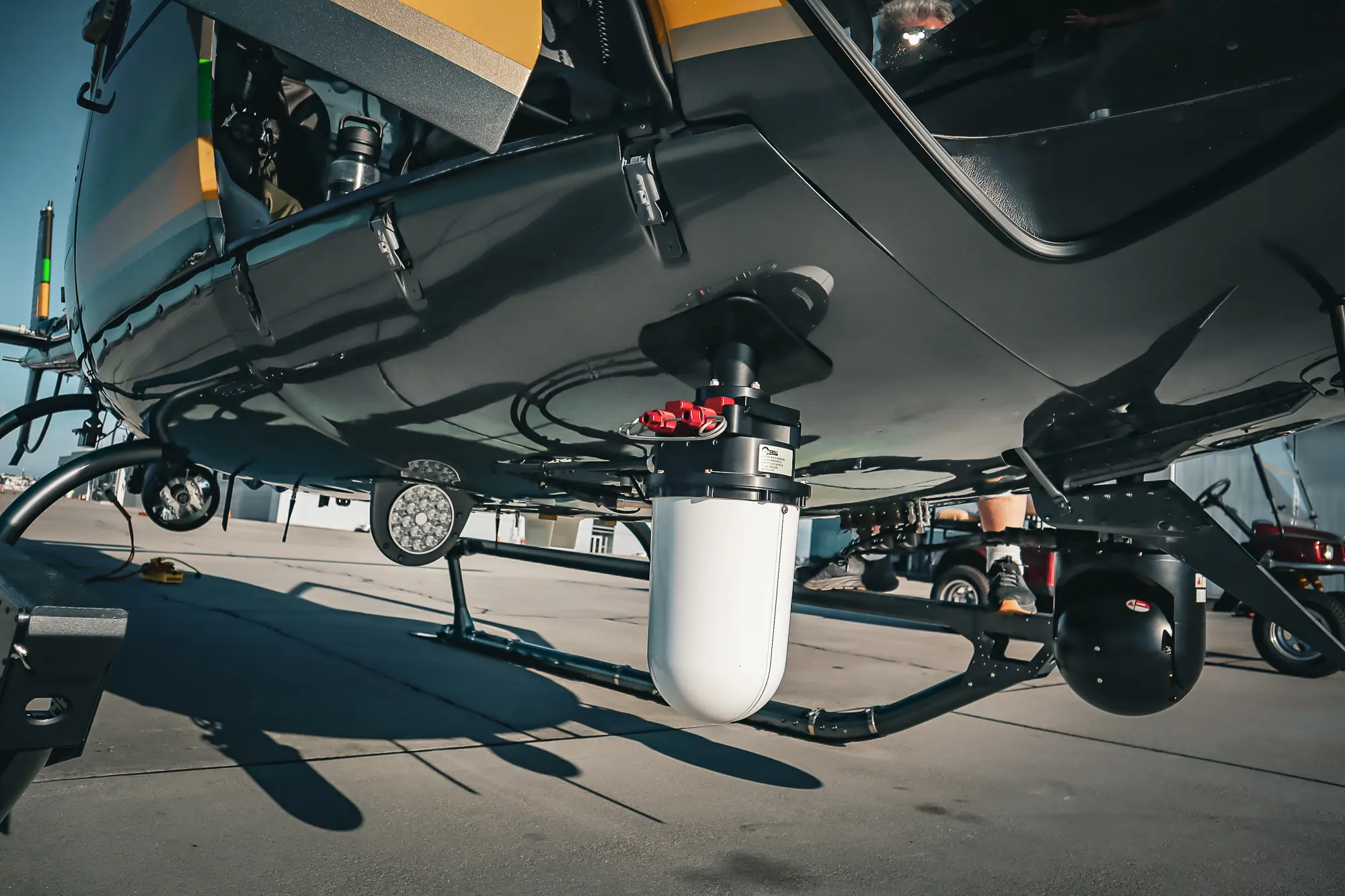

  • L3 Harris MX-10 Camera System
  • Shotover Mapping System
  • MacroBlue 17” Video Display System
  • Microwave Downlink System
  • Hangar One Avionics, Inc. Forward and Aft Looking Bullet Cam Installation
  • Appaero AIRS-400 Cockpit Cam
  • Lifesaver Tracking Provisions
  • Bino Holder

Lighting

  • AeroDynamix NVIS Cockpit Lighting Modification

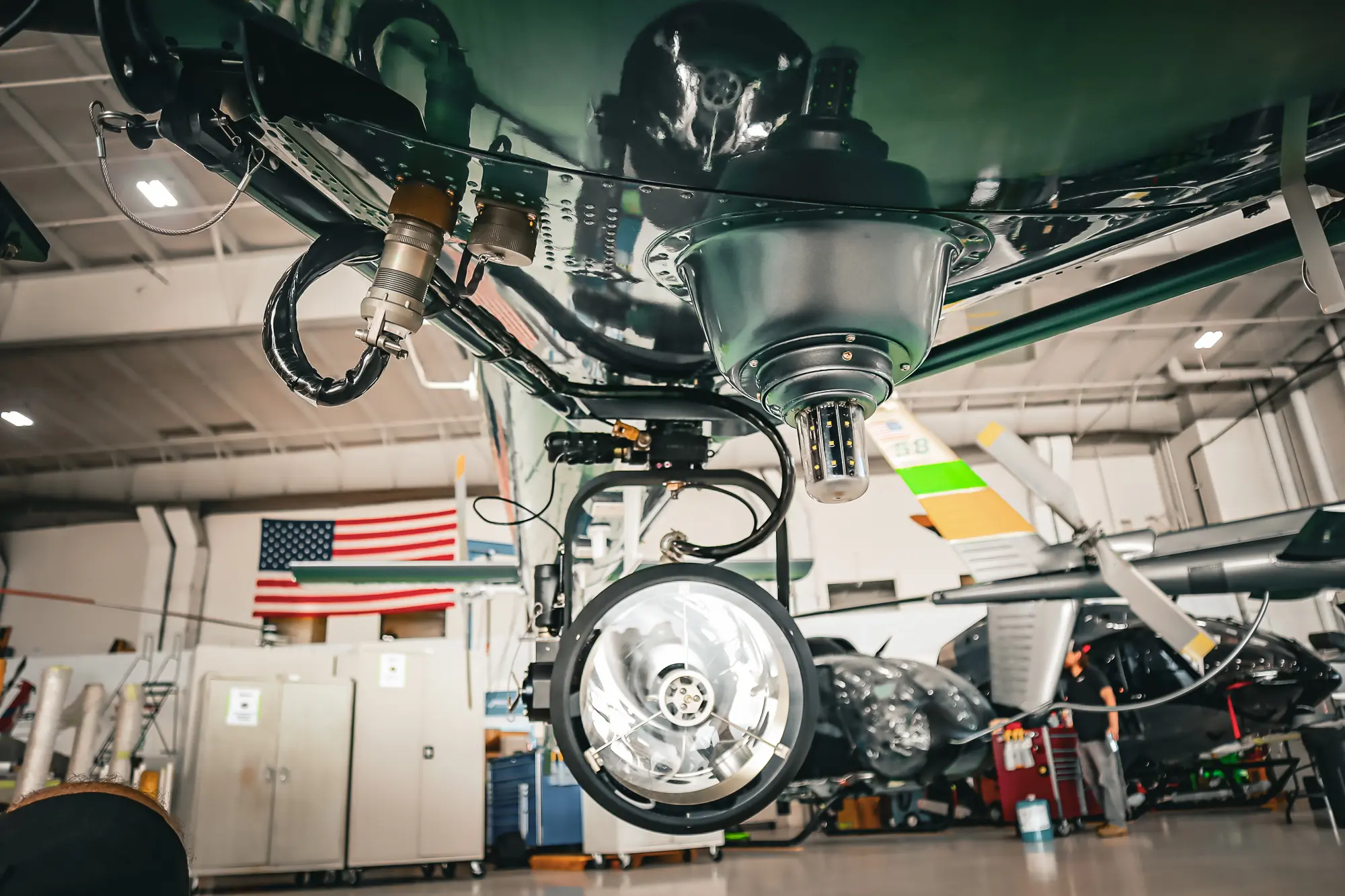

  • SX-16 Searchlight System
  • Luminator Controllable Landing Light
  • Luminator Landing and Taxi Lights
  • Vertical Fin Strobe (Anti-Collision)
  • Belly Strobe (White Anti-Collision)
  • Soderberg Cockpit Lighting System
  • Precise Flight, Inc. Pulselite
  • NVIS Baggage Light

Rescue, Special Mission and Cabin Equipment

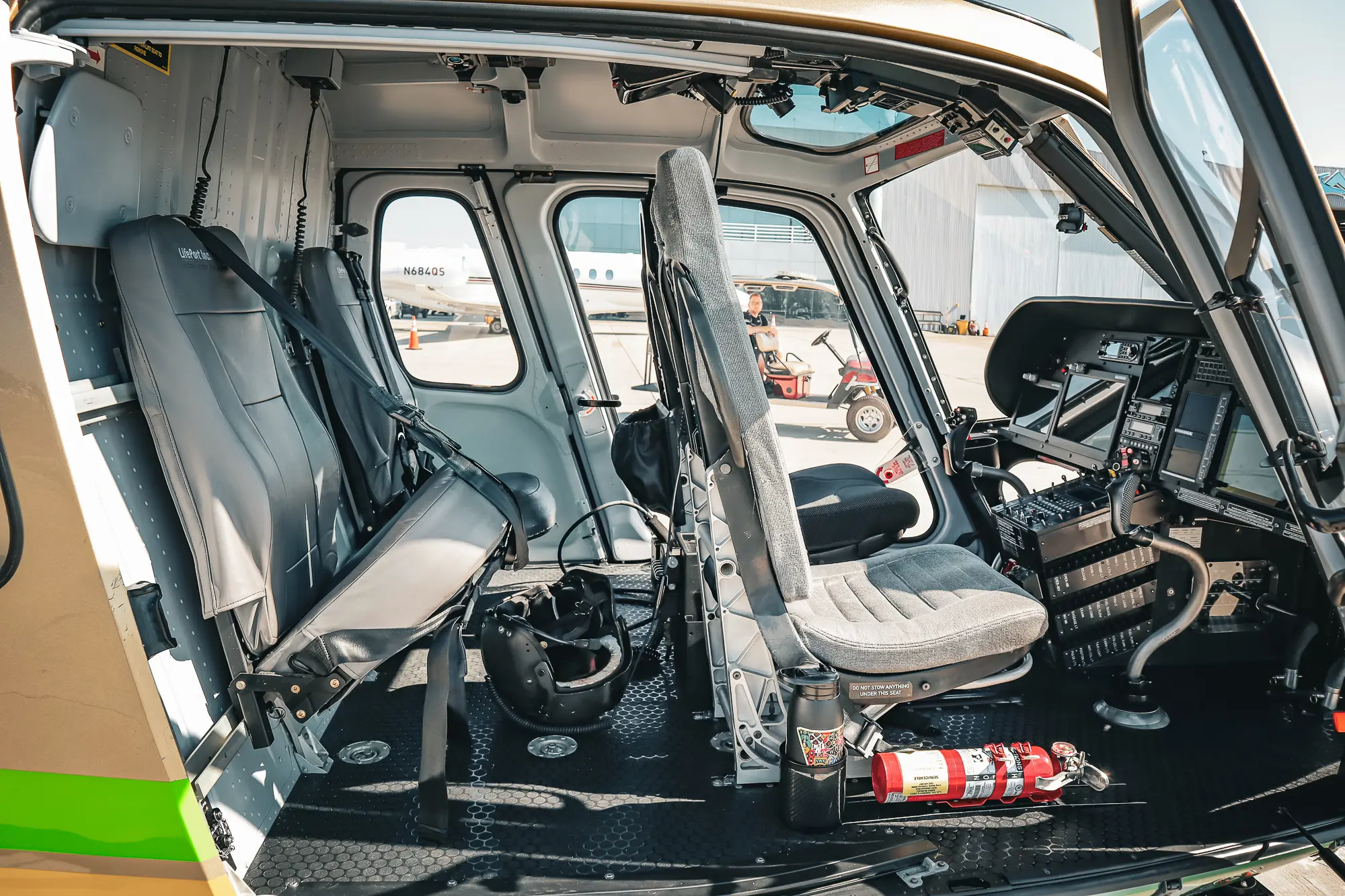

  • LifePort Wall Rack and Seating Configuration

Airframe Equipment

  • Donaldson Inlet Barrier Filter
  • Purolator Facet Scavenge Oil Filter
  • Airbus Canada Airframe Fuel Filter
  • Airbus Heavy Duty Tie Down Rings
  • Airbus Main Rotor Tie Down Provisions
  • Airbus Anti-Torque Pedal Extension
  • Dart Aerospace Cable Cutter
  • Shwayder Surfacite Skid Shoes
  • Tech-Tool Plastics, Inc. Windshields
  • Vector Aerospace Crash Resistant Fuel System
  • Microvib Main Rotor Track and Balance Provisions
  • Hangar One Avionics, Inc. Survival Kit Storage Box
  • Airworthy Products FCP-E200-1 198 Amp Starter Generator
  • Air-Com Corporation Air-conditioning
  • Hydraulic Ground Power Connection
